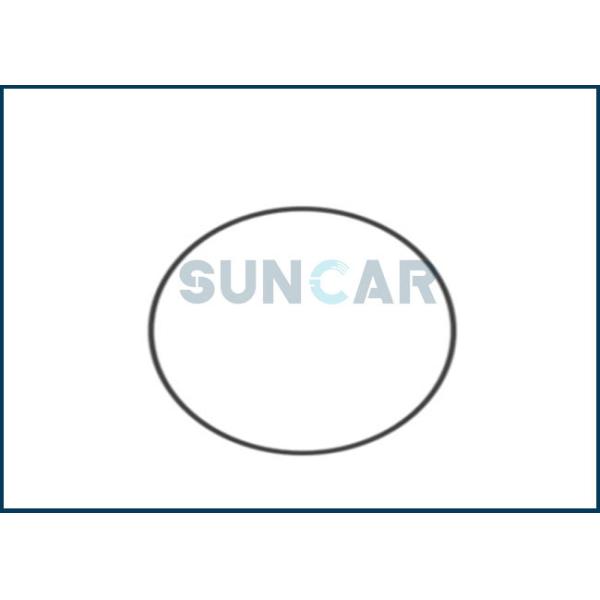

CA4J9223 4J-9223 4J9223 Support Seal Ring High Pressure For C-A-T
Description:
The support ring can prevent the seal from squeezing under high pressure appliC-A-Tions, and can also be used to protect the life of the overall
sealing system under sudden pressure changes.
Characteristic:
The C-A-T® backing ring is designed by combining the characteristics of elastic seals and mating parts, which is very helpful to ensure the life and
performance of the sealing system under high pressure appliC-A-Tions.
The size of the support ring strictly adheres to the tightness tolerance, which can ensure that they properly bridge the sealing groove and the
mating surface together. When selecting materials, the decision will be made based on their pressure resistance and wear resistance.
The support ring can be a closed ring or a split ring. The split ring is used to ensure easy assembly.
The C-A-T sealing system prevents leakage and contamination of more expensive parts. Protect your investment with original C-A-T seals.
AppliC-A-Tion:
Support rings are used for high-pressure static and dynamic sealing appliC-A-Tions, such as hydraulic pumps, valves, and engine systems.
Products Details :
| Product name | CA4J9223 4J-9223 4J9223 Support Seal Ring High Pressure For C-A-T |
| Brand | SUNCAR |
| Material | Polyurethane rubber |
| Hardness | 90 degree |
| Place original | Guangzhou,China |
| Loading port | Huangpu port,China |
| Features | Wide range use,seal oil performance;high temp. resistance/low temp. resistance |
| Payment | L/C, D/A, D/P, T/T, Western Union, |
| AppliC-A-Tion | Excavator,bulldozer,wheel loader,tructors;resell store |
| Style | Seal ring |
| Medium | hydraulic oil, flame retardant liquid, water and others |
| Type | Hydraulic seal ring |
| Fit equipment | C-A-T;Wheel-type loader;Off-highway truck;Wheel dozer;Wheel tractor-scraper;Track-type tractor |
| Size | Standard size |
Relative Part Numbers:
| 2J-0744 | 4J9218 | 4J-9224 |
| 2J0744 | 4J-9223 | 4J9224 |
| 2K-2940 | 4J9223 | 4J-9225 |
| 2K2940 | 2K-4096 | 4J9225 |
| 4J-9218 | 2K4096 | 3J-8466 |
| 5J0964 | 5J8150 | 5J8275 |
| 5J8200 | 5J8225 | 5J8325 |
| 5J8175 | 5J8300 | 5J8350 |
Relatice Parts:
| Pos. | Part No | Qty | Parts name |
| 1 | 9J-5549 | [1] | PISTON |
| 2 | 153-7533 | [1] | CYLINDER AS |
| 2A. | 9X-6574 | [1] | RING-RETAINING |
| 2B. | 150-1892 | [1] | BEARING |
| 2C. | 153-7535 | [1] | CAP |
| 3 | 153-7538 | [1] | HEAD |
| 4 | 167-2209 | [1] | SEAL AS-BUFFER |
| 5 | 153-7539 | [1] | ROD AS |
| 5A. | 9X-6574 | [1] | RING-RETAINING |
| 5B. | 210-7782 | [1] | BEARING AS |
| 6 | 225-3285 | [1] | SEAL-WIPER |
| 7 | 4J-9223 | [1] | RING |
| 8 | 5J-3488 | [1] | LOCKNUT (2-1/4-12-THD) |
| 9 | 167-2320 | [1] | SEAL-U-CUP |
| 10 | 6V-8237 | [6] | WASHER (26X44X4-MM THK) |
| 11 | 8F-8733 | [1] | SEAL-O-RING |
| 12 | 8T-0666 M | [4] | BOLT (M24X3X90-MM) |
| 13 | 8T-0667 M | [2] | BOLT (M24X3X100-MM) |
| 14 | 8T-1788 | [1] | SEAL AS |
| 15 | 8T-6745 | [1] | RING-WEAR |
| 16 | 9J-5550 | [1] | RING-WEAR |
| M | METRIC PART |
